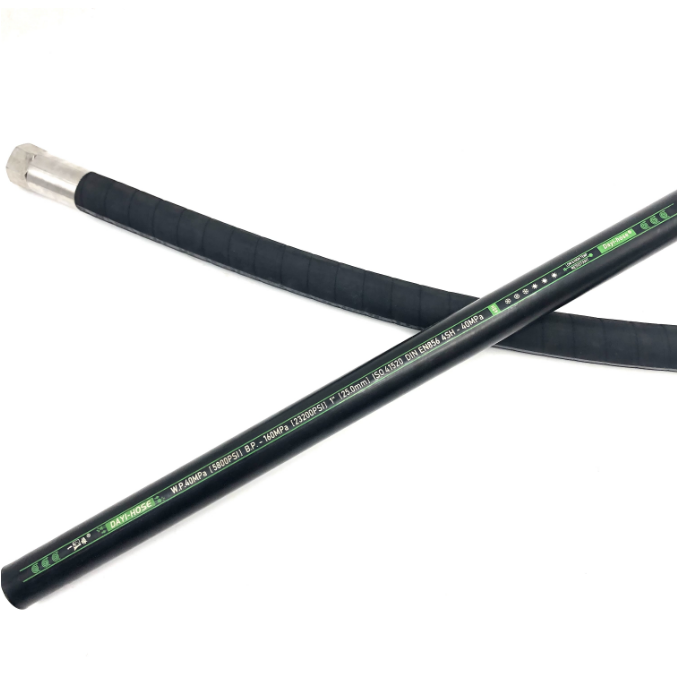

EN856 4SP Black smooth Cover Hydraulic Hose

INNER TUBE:oil resistant synthetic rubber
REINFORCEMENT:four spirals of high tensile steel wire
COVER:abrasion and weather resistant synthetic rubber
TEMPERATURE:-4℃ to +100℃

CONTACT NOW DOWNLOAD PDF

Details

Product Introduction

DN	Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
	inch	mm	mm	mm	MPa	Psi	MPa	Psi	mm	Kg/m
10	3/8	9.5	17.5	21.4	44.5	6450	180	26000	180	0.78
13	1/2	12.7	20.2	24.0	41.5	6000	166	24000	230	0.89
16	5/8	15.9	23.8	28.2	35.0	5000	140	20000	250	1.11
19	3/4	19.0	28.2	32.2	35.0	5000	140	20000	300	1.59
25	1	25.4	35.5	39.7	28.0	4000	112	16000	340	2.02
32	1-1/4	31.8	46.0	50.8	21.0	3000	84	12000	460	3.32
38	1-1/2	38.1	52.4	57.7	18.5	2700	74	10800	560	3.7
51	2	50.8	65.3	69.6	16.5	2400	66	9600	660	5.47

Products Description:

Smooth Cover Spiral Hose-EN 856 4SP/ Four Layers Of Spiral Wire Smooth Cover Hydraulic Rubber Hose is suitable for vegetable, synthetic and mineral oils, water and glycol,ester-based oils in very high pressure hydraulic power lines.

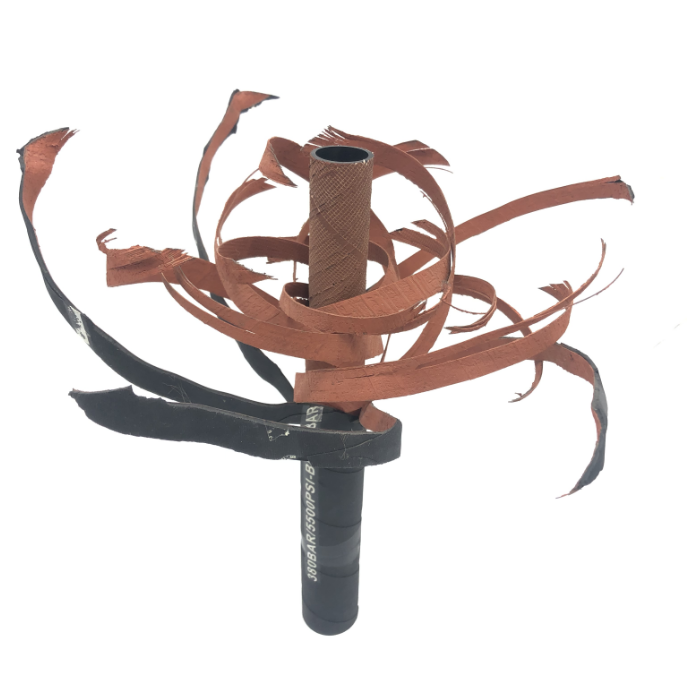

This hose is consist of an oil resistant synthetic rubber inner tube, four layers of spiral wire reinforcement which can make the hose resistant higher pressure, and the cover is made of oil, weather resistant synthetic rubber with smooth surface black color.

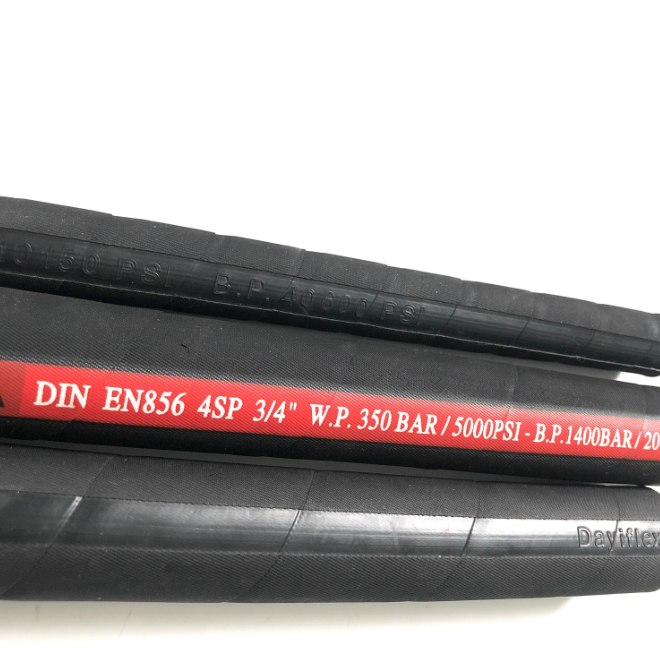

This DIN EN856-4SP Smooth Cover Wire Spiral Hydraulic Rubber Hose is the world's first innovation. It's easier to clean than wrapped cover. This section hose is suitable for transporting or water-based hydraulic fluids. Made of preeminent oil resistant synthetic rubber, four layers of steel wire wrapped in alternating directions reinforcement and oil, weather resistant synthetic rubber cover with black color, smooth surface.

Similar to EN 856 4SH hydraulic hose, EN 856 4SP hose has higher working pressure under the same working temperature. Four layers of high tensile spiral wire give the hose best abrasion resistance and impulse fatigue. This kind of reinforcement is ideal for outdoor applications like forestry and mine equipment.

Our advantage

High quality are our soul

All our products have a Two-Years！Two-Years！Two-Years warranty and will be returned and Pay Double！Pay Double！Pay Double if they have quality issue within two years

1.The inner rubber layer adopts the top raw material imported from Japan or South Korea: NBR, containing 35% rubber, hightemperature resistance, high pressure resistance and high strength.
2.Use the best domestic steel wire, German knitting machine, the best weaving technology 3*3, softer, smaller bending radius.
3.The outer rubber layer adopts CSM+CPE, which is more wear-resistant.
4.Automatic pressure testing equipment to ensure the quality of each hose.

production process

pack

packing

Application

The high pressure hose is mainly used for Mine hydraulic support ,oilfield exploitation ,object construction ,lifting transport metallurgic forging ,mine equipment, ship, injection molding machinery,agricultural machinery , all kinds of machine tools and various industrial sectors. Mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.
