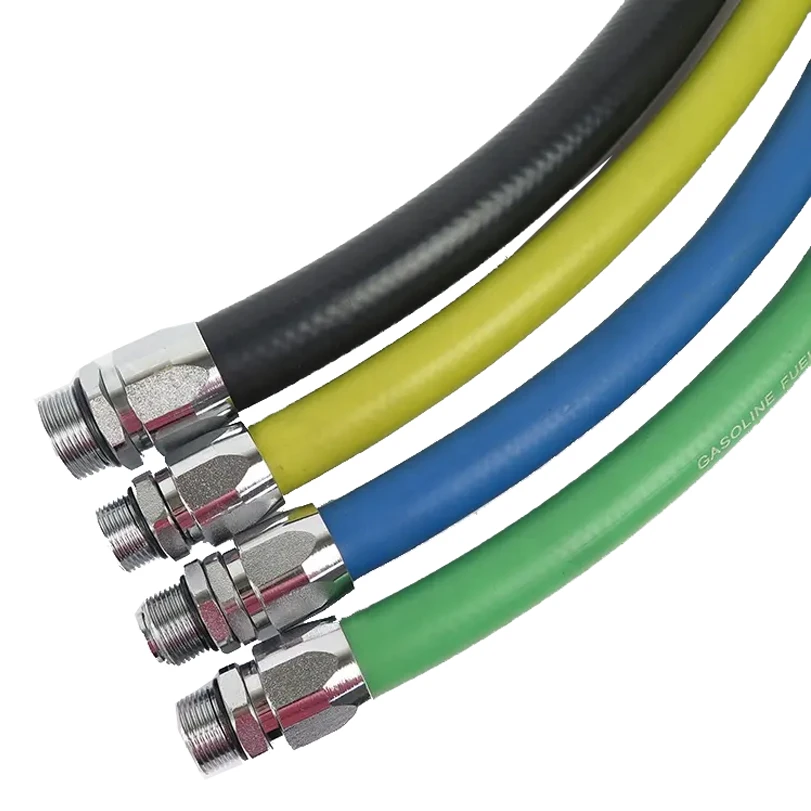

SAE100R5 Hose Performance Analysis
Introduction
SAE 100R5 is a widely utilized industry standard specifying the performance requirements for non-reinforced, hydraulic hose. Its position within the fluid power industry chain is as a critical component facilitating the transmission of hydraulic fluid in various applications, ranging from agricultural machinery and construction equipment to industrial manufacturing and material handling. Unlike reinforced hoses designed for higher pressures, SAE 100R5 hoses are suited for lower-pressure systems, typically up to 300 PSI, making them a cost-effective solution for numerous applications. Core performance characteristics include flexibility, resistance to abrasion, and compatibility with common hydraulic fluids. The standard defines specific criteria for burst pressure, pressure drop, and temperature range, ensuring reliable and safe operation. A key industry pain point relates to maintaining consistent quality across different manufacturers and ensuring correct hose selection to avoid premature failure due to exceeding pressure or temperature limits, or incompatibility with the conveyed fluid.
Material Science & Manufacturing
The fundamental material for SAE 100R5 hose is typically a blend of synthetic rubbers, predominantly nitrile rubber (NBR), also known as Buna-N, due to its excellent resistance to petroleum-based hydraulic fluids. NBR offers good abrasion resistance and flexibility at moderate temperatures. The specific formulation can be adjusted to enhance properties like oil resistance or low-temperature flexibility through the addition of plasticizers and other compounding ingredients. Manufacturing primarily involves extrusion. Rubber compounds are continuously extruded through a die to form the hose tube, followed by curing (vulcanization). This process involves heating the rubber with sulfur or other curing agents to crosslink the polymer chains, imparting strength, elasticity, and resistance to degradation. Critical parameters during extrusion include die temperature, extrusion pressure, and screw speed, which directly affect hose dimensions and surface finish. Post-extrusion, the hose undergoes a rigorous quality control process, including dimensional checks, pressure testing, and visual inspection for defects. The inner tube composition is paramount; substandard NBR can lead to swelling and degradation in contact with hydraulic fluids, diminishing hose lifespan. The absence of reinforcing layers means the tube itself bears the entirety of the operating pressure, necessitating precise control of rubber density and uniformity during extrusion. The cover material also commonly uses NBR, providing a protective layer against abrasion, ozone, and weathering.
Performance & Engineering
Performance of SAE 100R5 hoses is fundamentally governed by the material properties of the NBR compound and the precision of the manufacturing process. Force analysis centers on hoop stress within the hose wall when subjected to internal pressure. Since there’s no reinforcement, the entire pressure load is borne by the rubber matrix. Exceeding the rated working pressure leads to gradual expansion of the hose, ultimately culminating in rupture. Environmental resistance is also critical. Prolonged exposure to high temperatures reduces the rubber’s tensile strength and elasticity, increasing susceptibility to failure. Ozone cracking, caused by atmospheric ozone attacking unsaturated bonds in the rubber, can lead to surface cracks and eventual leakage. Compatibility with hydraulic fluids is paramount. Incompatible fluids can cause swelling, softening, or degradation of the rubber, compromising the hose’s integrity. SAE 100R5 hoses must comply with stringent testing protocols outlined in the standard, including burst pressure testing (withstanding a pressure significantly higher than the working pressure for a specified duration), pressure drop testing (measuring the pressure loss along the hose length at a given flow rate), and temperature range testing (evaluating performance at both high and low temperatures). The bending radius is also a crucial engineering consideration. Exceeding the minimum recommended bending radius induces stress concentration and increases the risk of kinking and failure.
Technical Specifications
| Parameter | Unit | SAE 100R5 Specification | Typical Value (Example) |
|---|---|---|---|
| Working Pressure | PSI | Up to 300 | 200 |
| Burst Pressure | PSI | Minimum 600 (2x Working Pressure) | 800 |
| Temperature Range | °F | -40 to +212 | -20 to +180 |
| Inner Tube Material | - | Nitrile Rubber (NBR) | NBR |
| Cover Material | - | Nitrile Rubber (NBR) | NBR |
| Minimum Bend Radius | Inches | Varies with hose ID (typically 6x ID) | 6 |
Failure Mode & Maintenance
SAE 100R5 hoses are susceptible to several failure modes. Fatigue cracking arises from repeated flexing and pressure cycling, particularly at connection points. Delamination, while less common in non-reinforced hoses, can occur if the rubber compound is improperly mixed or cured. Degradation from exposure to incompatible fluids leads to swelling, softening, and eventual leakage. Oxidation, caused by exposure to oxygen and heat, results in hardening and cracking of the rubber. Abrasion, particularly in harsh environments, wears down the cover, exposing the inner tube to damage. Maintenance best practices include regular visual inspection for cracks, bulges, or signs of degradation. Hoses should be replaced immediately if any damage is detected. Proper hose routing is crucial to avoid kinking and abrasion. Avoid exceeding the rated working pressure and temperature limits. When disconnecting hoses, ensure the system is depressurized to prevent fluid ejection. Store hoses in a cool, dry, and dark location to minimize degradation. Regularly check hose connections for tightness and signs of leakage. Using appropriate hose guards can protect against abrasion in exposed areas. Implementing a preventative maintenance schedule and documenting hose replacement history are vital for long-term reliability.
Industry FAQ
Q: What is the primary difference between SAE 100R5 and SAE 100R6 hose?
A: The key difference is reinforcement. SAE 100R6 hoses are reinforced with multiple layers of steel wire braid, allowing them to withstand significantly higher working pressures (up to 6000 PSI) compared to SAE 100R5 (up to 300 PSI). R6 hoses are used in applications requiring greater force transmission and robustness, while R5 hoses are suitable for lower-pressure systems where flexibility and cost-effectiveness are priorities.
Q: Can SAE 100R5 hose be used with phosphate ester hydraulic fluids?
A: Generally, no. Standard NBR rubber used in SAE 100R5 hoses is not compatible with phosphate ester fluids. These fluids can cause significant swelling and degradation of the NBR, leading to premature failure. Specialty hoses with fluoroelastomer (FKM) inner tubes are required for phosphate ester fluids.
Q: What impact does temperature have on the working pressure rating of SAE 100R5 hose?
A: Higher temperatures typically reduce the maximum allowable working pressure. While the standard specifies a temperature range, the working pressure should be derated at elevated temperatures to account for the reduced tensile strength and elasticity of the rubber. Consult the hose manufacturer’s specifications for derating factors.
Q: How do I determine the correct hose size for my application?
A: Hose size selection depends on the flow rate and desired velocity of the hydraulic fluid. Undersized hoses create excessive pressure drop, reducing system efficiency and potentially causing cavitation. Oversized hoses increase cost and can be more difficult to handle. Calculations considering flow rate, fluid viscosity, and desired velocity are necessary to determine the optimal hose inner diameter.
Q: What is the typical service life of an SAE 100R5 hose?
A: The service life of an SAE 100R5 hose varies significantly depending on operating conditions, fluid compatibility, and maintenance practices. Under ideal conditions, a properly maintained hose can last several years. However, exposure to harsh environments, incompatible fluids, or exceeding pressure limits can dramatically shorten its lifespan. Regular inspections and preventative maintenance are crucial for maximizing service life.
Conclusion
SAE 100R5 hydraulic hose represents a vital component in countless hydraulic systems, offering a cost-effective and flexible solution for lower-pressure applications. Understanding the material science behind its construction – predominantly nitrile rubber – and the manufacturing processes employed, particularly extrusion and vulcanization, is crucial for ensuring reliable performance. Correct application, accounting for fluid compatibility, temperature limitations, and pressure ratings, is paramount to prevent premature failure and maintain system integrity.
Continued advancements in rubber compound formulations and manufacturing techniques will likely focus on enhancing abrasion resistance, extending temperature ranges, and improving resistance to emerging hydraulic fluids. Proactive maintenance, encompassing regular inspections and adherence to manufacturer recommendations, remains the cornerstone of maximizing the service life and safety of SAE 100R5 hoses, ultimately reducing downtime and operational costs.
