Introduction

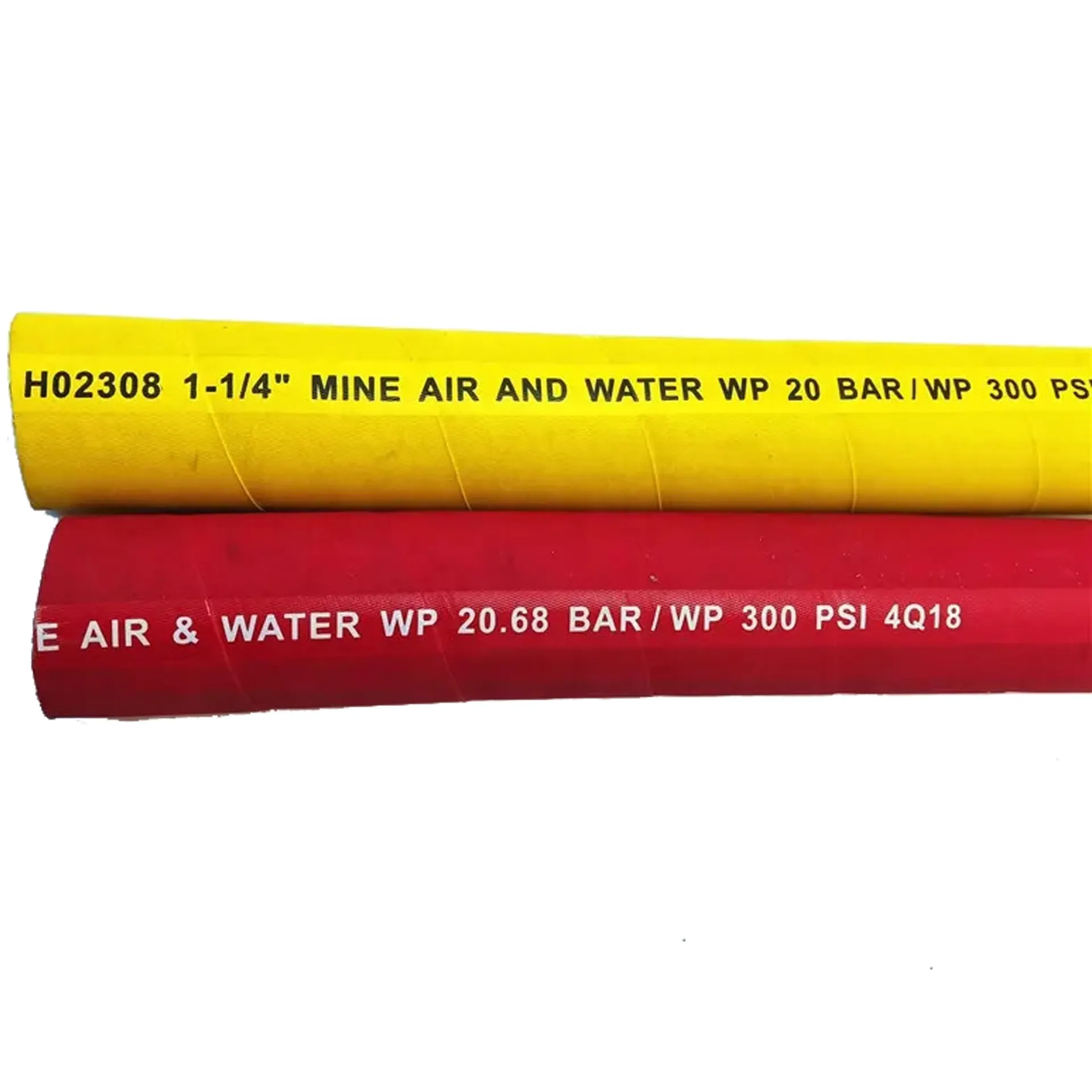

SAE 100R3 is a widely recognized standard specifying performance requirements for non-reinforced hydraulic hose. Positioned within the fluid power industry chain, it represents a critical component in systems requiring the transmission of hydraulic fluid under pressure. These hoses are commonly found in agricultural machinery, construction equipment, industrial machinery, and mobile hydraulics. Core performance characteristics, as dictated by the SAE 100R3 standard, center around burst pressure, working pressure, temperature range, and fluid compatibility. A key industry pain point is ensuring consistent hose performance across manufacturers and application environments, as failures can lead to costly downtime, safety hazards, and environmental damage. The standard aims to mitigate these risks by providing a rigorous framework for testing and qualification. Furthermore, a challenge lies in optimizing hose construction to balance cost, flexibility, and durability – attributes that are often inversely proportional.

Material Science & Manufacturing

SAE 100R3 hose construction fundamentally relies on a combination of synthetic rubber compounds and reinforcing braid. The inner tube is typically composed of oil-resistant synthetic rubber, most commonly nitrile rubber (NBR) due to its excellent resistance to petroleum-based hydraulic fluids. However, other elastomers like chloroprene rubber (CR) may be used for specific fluid compatibility requirements. The reinforcement layer is typically a single braid of high-tensile steel wire, providing the necessary strength to withstand internal pressure. The cover, protecting the braid from external abrasion and environmental factors, is usually a synthetic rubber compound, often a blend of styrene-butadiene rubber (SBR) and other polymers for enhanced weathering resistance.

Manufacturing involves several critical stages. The inner tube is extruded through a die to achieve the desired bore size and wall thickness. Precise temperature control is vital during extrusion to ensure consistent rubber properties and prevent premature vulcanization. Following extrusion, the steel wire braid is applied, typically using a helical braiding machine. The critical parameter here is braid angle – a steeper angle provides greater pressure resistance but reduces flexibility. The braided hose is then vulcanized, a process of cross-linking the rubber molecules using heat and pressure, enhancing its strength, elasticity, and resistance to degradation. Post-vulcanization, the cover is extruded, and final quality checks, including burst pressure testing and dimensional inspection, are performed. Maintaining consistent rubber compound formulations and precise control over the vulcanization process are paramount to achieving consistent performance and meeting the SAE 100R3 standard.

Performance & Engineering

The engineering design of SAE 100R3 hose focuses on balancing pressure containment with flexibility and durability. Force analysis centers on hoop stress within the hose wall, determined by the internal fluid pressure and hose diameter. The steel wire braid provides the tensile strength to counteract this hoop stress, preventing hose rupture. Working pressure, specified by the standard, is a fraction (typically 4:1) of the burst pressure, providing a safety factor. Environmental resistance is a crucial consideration. Exposure to extreme temperatures, UV radiation, ozone, and various chemicals can degrade the rubber compounds, reducing their elasticity and strength. Therefore, cover compounds are often formulated with antioxidants, UV stabilizers, and ozone protectants. Furthermore, the hose must demonstrate adequate fluid compatibility to prevent swelling, softening, or cracking when exposed to the hydraulic fluid it is designed to convey. Compliance with SAE J517 standard is crucial, which defines the test procedures for verifying hose performance characteristics. Fatigue resistance is also vital, particularly in applications involving constant flexing and movement.
