ptfe hose Performance Analysis

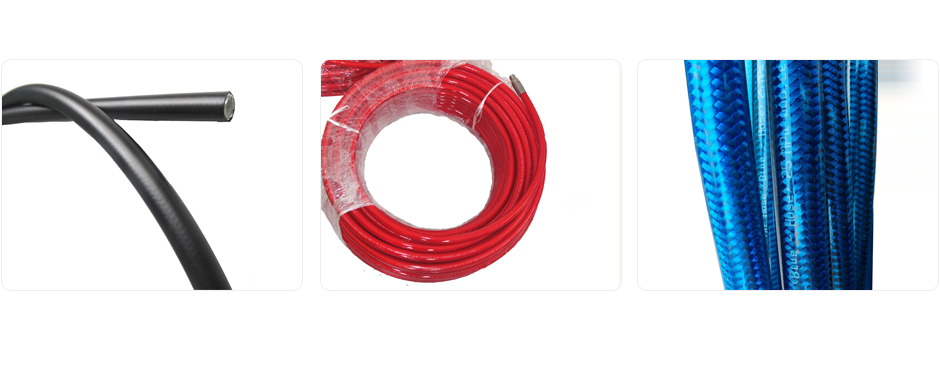

Introduction
Polytetrafluoroethylene (PTFE) hose is a fluoropolymer-lined flexible tube widely utilized across diverse industrial applications requiring the conveyance of corrosive fluids, high-purity chemicals, and extreme temperature substances. Positioned as a critical component in fluid transfer systems, PTFE hose serves as a safer, more durable, and chemically inert alternative to metallic or rubber hoses in environments where material compatibility is paramount. Its core performance characteristics—chemical resistance, high-temperature stability, low coefficient of friction, and dielectric strength—dictate its suitability in industries such as chemical processing, pharmaceuticals, food & beverage, automotive, and aerospace. A key industry pain point addressed by PTFE hose is the prevention of contamination and corrosion, extending equipment lifespan and ensuring process integrity. Beyond simple fluid transport, PTFE hose functionality often integrates with specialized fittings and assemblies to meet specific pressure, temperature, and flow rate requirements, demanding rigorous quality control during manufacturing and installation.
Material Science & Manufacturing
PTFE’s inherent properties stem from its unique molecular structure: a linear chain of carbon atoms with fluorine atoms attached. This configuration confers exceptional chemical inertness, thermal stability (maintaining properties up to 260°C), and a remarkably low coefficient of friction. Raw material selection focuses on virgin PTFE resin, ensuring high purity and consistent performance. Manufacturing PTFE hose typically involves several key processes. Extrusion is the initial step, forcing molten PTFE through a die to create a seamless tube. Sintering then follows; this crucial heat treatment process fuses the PTFE particles without melting, maintaining the material’s high molecular weight and superior properties. Following sintering, the hose undergoes dimensional calibration and surface treatment (often etching) to improve adhesion for subsequent layers. Convoluted or braided reinforcement layers—typically stainless steel or other fluoropolymers—are then applied. Braiding increases pressure resistance and provides structural support. Finally, end fitting attachment, utilizing techniques like crimping, swaging, or threaded connections, completes the manufacturing process. Critical parameters include resin molecular weight (directly impacting mechanical properties), sintering temperature & time (affecting density and permeability), and braid density (governing pressure capacity). Chemical compatibility of the PTFE resin must be validated against the intended fluid media to prevent degradation and failure. Post-processing quality control includes leak testing, burst pressure testing, and dimensional inspection.
Performance & Engineering
The performance of PTFE hose is dictated by a complex interplay of material properties and geometric design. Force analysis focuses on hoop stress (pressure-induced tensile stress in the hose wall) and longitudinal stress (stress due to internal pressure and external loads). Braiding significantly enhances the hose’s ability to withstand these stresses. Environmental resistance is a key performance parameter. PTFE exhibits exceptional resistance to a broad spectrum of chemicals, including strong acids, bases, and solvents. However, prolonged exposure to certain highly reactive alkali metals and molten fluorides can cause degradation. Temperature resistance is also crucial; PTFE’s mechanical properties decline at temperatures exceeding its service limit. Compliance requirements vary by industry. For food & beverage applications, hoses must comply with FDA regulations (21 CFR 177.1550) regarding food contact safety and extractables. In pharmaceutical applications, USP Class VI certification ensures biocompatibility and low leachables. Automotive applications may require compliance with SAE J2044 standards for fuel hose. Functional implementation requires careful consideration of bend radius (to avoid kinking and stress concentration), flow velocity (to minimize erosion), and fitting compatibility (to ensure a leak-proof seal). Fatigue life under cyclical pressure and temperature fluctuations is a critical design factor, necessitating proper material selection and construction.
Technical Specifications
| Parameter | Unit | Typical Value | Test Standard |
|---|---|---|---|
| Operating Pressure (Maximum) | psi | Up to 5000 | ASTM D1418 |
| Operating Temperature (Minimum) | °F | -400 | ASTM D3489 |
| Operating Temperature (Maximum) | °F | 500 | ASTM D3489 |
| Tensile Strength | psi | 4000-6000 | ASTM D412 |
| Elongation at Break | % | 100-300 | ASTM D412 |
| Chemical Resistance | - | Excellent to most chemicals | ASTM F15 |
Failure Mode & Maintenance
PTFE hose, while robust, is susceptible to specific failure modes. Fatigue cracking can occur under cyclical pressure and temperature, particularly at bend points or near fittings. Delamination of PTFE layers, or between PTFE and reinforcement braiding, can result from improper manufacturing or exposure to incompatible fluids. Degradation due to exposure to specific chemicals (e.g., molten alkali metals) leads to loss of mechanical properties and eventual failure. Oxidation, though less common, can occur at extremely high temperatures in the presence of oxygen. Permeation of certain low molecular weight gases through the PTFE matrix can also be a concern in specific applications. Maintenance practices focus on preventative measures. Regular visual inspection for cracks, kinks, or swelling is crucial. Pressure testing should be conducted periodically to verify integrity. Fittings should be inspected for leaks and corrosion. Avoid exceeding the hose’s rated pressure and temperature limits. Proper storage is essential; hoses should be stored in a clean, dry environment, away from direct sunlight and extreme temperatures. When cleaning, use mild detergents and avoid abrasive cleaners that can damage the PTFE surface. Replacement should be considered upon detection of any damage or degradation, or after the hose has reached its service life as defined by the manufacturer.
Industry FAQ
Q: What are the primary differences between a single-layer PTFE hose and a braided PTFE hose in terms of performance and application?
A: Single-layer PTFE hose is suitable for low-pressure applications involving highly corrosive fluids where flexibility is paramount. It offers excellent chemical resistance but limited pressure handling capability. Braided PTFE hose, reinforced with stainless steel or other materials, significantly increases pressure resistance, making it suitable for high-pressure applications such as hydraulic systems and chemical transfer lines. The braiding also provides improved kink resistance and dimensional stability. The choice depends on the specific pressure and temperature requirements of the application.
Q: How does the PTFE resin’s molecular weight affect the hose’s performance characteristics?
A: Higher molecular weight PTFE resin generally results in superior mechanical properties, including increased tensile strength, elongation, and creep resistance. It also improves chemical resistance and reduces permeability. Lower molecular weight resins are easier to process but may exhibit reduced performance characteristics. Therefore, selecting a PTFE hose manufactured with high molecular weight resin is crucial for demanding applications.
Q: What considerations are necessary when selecting fittings for PTFE hose?
A: Fittings must be chemically compatible with both the hose and the conveyed fluid. Material selection (e.g., stainless steel, PTFE-lined fittings) is critical. The fitting attachment method (crimping, swaging, threading) must be appropriate for the hose construction and pressure requirements. Proper sealing mechanisms (e.g., O-rings, gaskets) are essential to prevent leaks. Ensure the fitting bore diameter matches the hose inner diameter to minimize flow restriction.
Q: What is the impact of permeation through PTFE hose and how can it be mitigated?
A: PTFE is not entirely impermeable; certain low molecular weight gases can permeate through the PTFE matrix. This is more pronounced at higher temperatures and pressures. Mitigation strategies include selecting a hose with a thicker PTFE wall, employing a multilayer construction with a barrier layer, and avoiding prolonged exposure to permeating gases. In critical applications, permeation testing should be conducted to verify suitability.
Q: What cleaning agents are safe to use on PTFE hose, and which should be avoided?
A: Mild detergents and water are generally safe for cleaning PTFE hose. Isopropyl alcohol can also be used for degreasing. However, avoid strong solvents (e.g., acetone, MEK), abrasive cleaners, and strong acids or bases, as these can damage the PTFE surface and compromise its properties. Rinse thoroughly with water after cleaning to remove any detergent residue.
Conclusion
PTFE hose represents a critical advancement in fluid transfer technology, offering unparalleled chemical resistance, thermal stability, and performance characteristics for demanding industrial applications. Understanding the intricacies of PTFE material science, manufacturing processes, and potential failure modes is essential for selecting the appropriate hose for a given application and ensuring long-term reliability. Proper maintenance and adherence to industry standards are equally important for maximizing hose lifespan and preventing costly failures.
Future developments in PTFE hose technology are likely to focus on enhancing barrier properties to further reduce permeation, improving high-temperature performance, and developing more sustainable manufacturing processes. Advancements in braiding materials and fitting designs will also contribute to increased pressure capabilities and improved overall system performance. Continued research and development will solidify PTFE hose’s position as a vital component in a wide range of industrial sectors.
