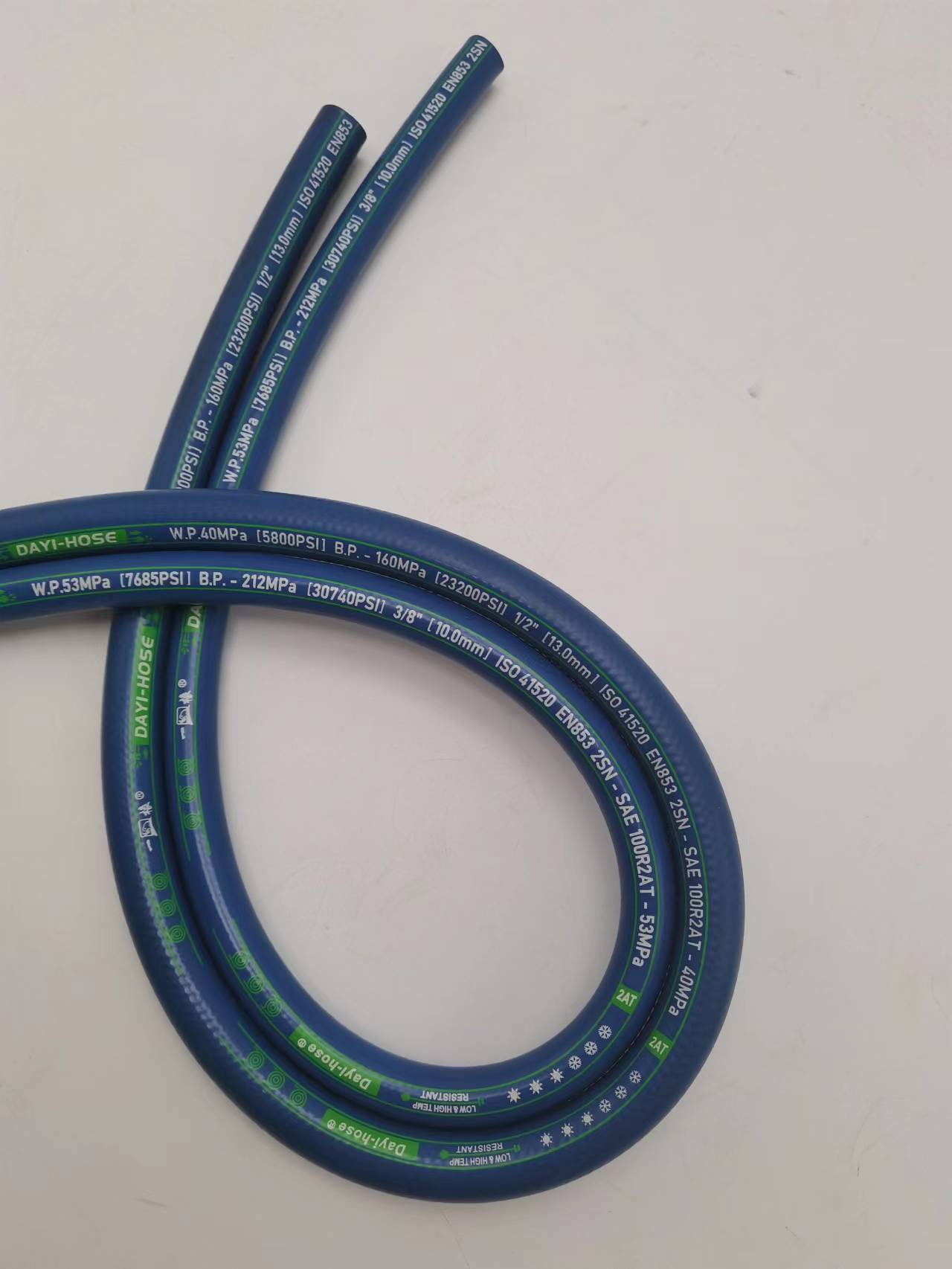

hydraulic oil hose Performance and Engineering
Introduction
Hydraulic oil hose is a critical component in hydraulic systems, responsible for the safe and efficient transmission of pressurized hydraulic fluid. Positioned within the broader industrial fluid conveyance chain, its performance directly impacts the functionality, reliability, and safety of machinery across diverse sectors, including construction, agriculture, manufacturing, and aerospace. These hoses are engineered to withstand extreme pressures, temperatures, and exposure to a variety of fluids, making material selection and construction methodology paramount. Core performance characteristics include pressure rating, temperature range, fluid compatibility, and resistance to abrasion and kinking. The industry faces ongoing challenges related to extending hose service life, minimizing fluid leakage, and achieving compliance with increasingly stringent environmental regulations. A comprehensive understanding of hose construction, material properties, and failure mechanisms is therefore crucial for engineers, procurement managers, and maintenance personnel.
Material Science & Manufacturing
Hydraulic hose construction typically involves multiple layers, each contributing to specific performance characteristics. The innermost layer, the tube, is in direct contact with the hydraulic fluid and is commonly made from synthetic rubbers like nitrile (NBR), ethylene propylene diene monomer (EPDM), or fluorocarbon (FKM, commonly known as Viton). NBR offers excellent resistance to petroleum-based fluids, EPDM excels in phosphate ester fluids and high-temperature applications, and FKM provides superior chemical resistance and high-temperature stability. The reinforcement layer provides the hose’s strength and pressure resistance. Common materials include braided high-tensile steel wire (often exceeding 2000 MPa tensile strength), spiral-wound steel wire, or synthetic fiber braids (e.g., aramid fibers like Kevlar). Steel reinforcement is preferred for high-pressure applications, while synthetic fibers offer flexibility and reduced weight. The outer cover protects the reinforcement layer from abrasion, weathering, and chemical attack, typically utilizing synthetic rubbers like chlorinated polyether (CPE) or polyurethane.
Manufacturing processes vary depending on hose type. Tube extrusion is standard, where the rubber compound is forced through a die to create a seamless tube. Reinforcement layers are then applied. For braided hoses, steel wires are meticulously braided around the tube using automated braiding machines. Spiral-wound hoses involve wrapping pre-formed steel wire helically around the tube. Following reinforcement, the outer cover is extruded. Critical parameters controlled during manufacturing include rubber compound formulation (viscosity, cure rate), wire tension during braiding/winding, and extrusion temperature/pressure. Quality control involves burst pressure testing, impulse testing (simulating pressure pulsations), and dimensional inspection to ensure adherence to specifications. Post-curing processes are essential to achieve optimal rubber properties and dimensional stability.
Performance & Engineering
Hydraulic hose performance is fundamentally governed by principles of fluid mechanics and materials science. Force analysis focuses on hoop stress within the hose wall, dictated by internal pressure and hose diameter. The reinforcement layer bears the majority of this stress, requiring precise wire gauge and braid angle calculations to ensure adequate safety margins. Burst pressure is typically specified as a multiple (e.g., 4:1) of the working pressure. Impulse pressures, resulting from pump pulsations and valve actuation, induce fatigue stresses in the hose. Impulse testing assesses the hose’s ability to withstand repeated pressure spikes without failure. Environmental resistance is critical; hoses must maintain flexibility and strength across a specified temperature range (-40°C to +100°C is common) and resist degradation from exposure to ozone, UV radiation, and hydraulic fluids.
Compliance requirements vary geographically but generally adhere to standards set by SAE International (SAE J517, SAE J1926), the European Standardization Committee (EN 853, EN 857), and national standards bodies. These standards define test methods, performance criteria, and marking requirements. Functional implementation involves correct hose assembly with appropriate fittings. Fittings must be rated for the hose’s working pressure and be properly crimped to ensure a leak-proof seal. Incorrect fitting selection or improper crimping are major causes of hose failures. Furthermore, hose routing should minimize bending and twisting to prevent kinking and abrasion. The selection of hose material must be compatible with the hydraulic fluid to prevent swelling, softening, or chemical degradation of the tube.
Technical Specifications
| Parameter | SAE 100R1AT | SAE 100R2AT | DIN EN 853 1SN | DIN EN 853 2SN |
|---|---|---|---|---|
| Working Pressure (PSI) | 600 | 1200 | 315 bar (4569 PSI) | 630 bar (9137 PSI) |
| Burst Pressure (PSI) | 2400 | 4800 | 1275 bar (18500 PSI) | 2550 bar (37000 PSI) |
| Temperature Range (°C) | -40 to +100 | -40 to +100 | -40 to +100 | -40 to +100 |
| Tube Material | NBR | NBR | NBR | NBR |
| Reinforcement | Single Steel Braid | Double Steel Braid | Single Steel Wire Spiral | Double Steel Wire Spiral |
| Cover Material | CPE | CPE | CPE | CPE |
Failure Mode & Maintenance
Common failure modes in hydraulic hoses include burst failure (due to exceeding pressure limits), impulse failure (fatigue cracking from repeated pressure cycles), abrasion damage (caused by external contact), kinking (restricting fluid flow and potentially causing rupture), and degradation of the rubber material (due to exposure to heat, chemicals, or UV radiation). Burst failures typically occur suddenly and catastrophically, posing a significant safety hazard. Impulse failures are often preceded by visible signs of wear, such as cracking near the fitting. Abrasion can compromise the reinforcement layer, leading to eventual rupture. Kinking reduces flow and creates localized stress concentrations. Rubber degradation manifests as hardening, cracking, or swelling, diminishing the hose’s flexibility and strength. Oxidation of the rubber material is also a prevalent issue over time.
Preventative maintenance is crucial. Regular visual inspections should be conducted to identify signs of wear, abrasion, or cracking. Hoses should be replaced before reaching the end of their service life, as determined by manufacturer recommendations or based on operating conditions. Proper hose routing and support are essential to prevent abrasion and kinking. Maintaining clean hydraulic fluid is critical; contamination can accelerate wear and damage the hose’s internal components. When replacing hoses, ensure compatibility with the hydraulic fluid and use properly rated fittings. Crimping procedures must be followed meticulously to ensure a secure and leak-proof connection. Consider implementing a hose management program that tracks hose age, operating hours, and maintenance history.
Industry FAQ
Q: What are the key differences between SAE 100R1AT and SAE 100R2AT hoses, and when would I choose one over the other?
A: The primary difference lies in the reinforcement. 100R1AT uses a single steel braid, making it suitable for moderate pressure applications (up to 600 PSI working pressure). 100R2AT utilizes a double steel braid, providing significantly higher pressure capability (up to 1200 PSI working pressure) and greater durability. Choose 100R2AT for systems with higher operating pressures, frequent impulse loads, or demanding operating environments. 100R1AT is appropriate for lower-pressure, less demanding applications where cost is a primary concern.
Q: How does temperature affect the performance and lifespan of a hydraulic hose?
A: Temperature extremes significantly impact hose performance. High temperatures accelerate rubber degradation, reducing flexibility and strength. Low temperatures can cause the rubber to become brittle and more susceptible to cracking. Exceeding the specified temperature range can lead to premature failure. Always select a hose rated for the expected operating temperature and consider using hoses with specialized high-temperature or low-temperature formulations when necessary.
Q: What are the common causes of hose leaks, and what steps can be taken to prevent them?
A: Common causes include improper fitting crimping, damaged or corroded fittings, worn hose ends, and internal hose degradation. Prevention involves using properly rated fittings, ensuring correct crimping procedures, regularly inspecting hoses for damage, and maintaining clean hydraulic fluid. Using anti-corrosion compounds on fittings can also help prevent leaks caused by corrosion.
Q: How important is fluid compatibility when selecting a hydraulic hose?
A: Fluid compatibility is critical. Using a hose incompatible with the hydraulic fluid can lead to swelling, softening, or chemical degradation of the tube, resulting in leaks or failure. Always consult the hose manufacturer’s compatibility chart to ensure the hose material is suitable for the specific fluid being used.
Q: What is the role of the hose cover, and what materials are typically used?
A: The hose cover provides external protection against abrasion, weathering, chemicals, and UV radiation. It also contributes to the hose’s overall flexibility. Common cover materials include CPE (chlorinated polyether) which offers good abrasion and weather resistance, and polyurethane which provides excellent oil resistance and flexibility. The choice depends on the specific application and operating environment.
Conclusion
Hydraulic oil hose is a deceptively complex component, requiring a thorough understanding of material science, manufacturing processes, and engineering principles to ensure reliable and safe operation. Selecting the appropriate hose for a given application necessitates careful consideration of pressure ratings, temperature ranges, fluid compatibility, and environmental factors. Proactive maintenance, including regular inspections and timely replacement, is paramount to preventing catastrophic failures and maximizing service life.
As hydraulic systems become increasingly sophisticated and operate in more demanding environments, the development of advanced hose materials and construction techniques will continue to be critical. Future trends may include the use of smart hoses with embedded sensors for real-time condition monitoring, self-repairing materials, and environmentally friendly hose formulations. A focus on extending hose service life and minimizing environmental impact will drive innovation in this critical area of industrial fluid conveyance.
