Hydraulic Hose Ferrule Performance Analysis

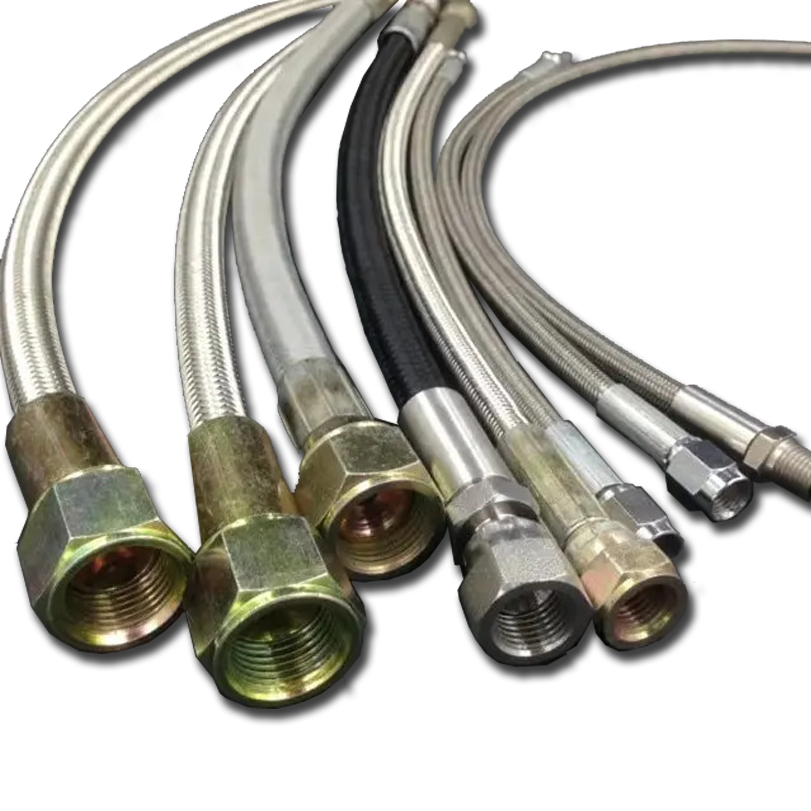

Introduction
Hydraulic hose ferrules are critical components in hydraulic systems, serving as the mechanical connection between a hydraulic hose and its associated fittings. They are typically constructed from carbon steel, alloy steel, or stainless steel, and their primary function is to provide a high-strength, leak-proof seal under significant pressure. The ferrule’s design and material selection are paramount to the integrity and safety of the entire hydraulic circuit. In the industry chain, ferrules represent a specialized consumable; their quality directly influences the performance and lifespan of hoses and fittings, making them a crucial component impacting overall system reliability. Core performance metrics for hydraulic hose ferrules include burst pressure, tensile strength, and resistance to corrosion. A poorly selected or incorrectly installed ferrule can lead to catastrophic system failure, resulting in downtime, safety hazards, and costly repairs. This guide provides an in-depth technical analysis of hydraulic hose ferrules, covering material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards.
Material Science & Manufacturing
The material science governing hydraulic hose ferrule performance centers around the strength, ductility, and corrosion resistance of the chosen alloy. Carbon steel ferrules (typically SAE 1045 or equivalent) are common due to their cost-effectiveness but require protective coatings to mitigate corrosion. Alloy steel ferrules, often incorporating chromium and molybdenum, offer increased strength and improved corrosion resistance. Stainless steel (304, 316) ferrules are selected for applications demanding superior corrosion resistance, such as marine or chemical processing environments. Manufacturing processes typically involve cold forming (drawing and stamping) from solid bar stock. This cold working process increases the material's tensile strength and hardness. Precise dimensional control is crucial during forming to ensure a proper interference fit within the fitting socket. Key parameter control includes wall thickness consistency, precise angle of the flare (if applicable), and surface finish. Heat treatment processes, such as annealing or stress relieving, are sometimes employed to optimize material properties and minimize residual stresses. Surface treatments, like zinc plating, phosphate coating, or epoxy coating, are frequently applied to carbon steel ferrules to enhance corrosion protection. Quality control procedures include dimensional inspection using calipers and micrometers, hardness testing (Rockwell or Vickers), and visual inspection for surface defects. The selection of the appropriate lubrication during the forming process is also critical to prevent galling and ensure a smooth surface finish.
Performance & Engineering
The performance of a hydraulic hose ferrule is governed by its ability to withstand high pressures and maintain a leak-proof seal. Force analysis involves calculating the radial force exerted by the ferrule on the hose and fitting during assembly and operation. This force is critical for establishing the necessary interference fit. The ferrule must also resist hoop stress induced by internal pressure. Environmental resistance is a significant concern, particularly in applications exposed to corrosive fluids, temperature extremes, and UV radiation. Material selection is paramount for ensuring long-term performance in these environments. Compliance requirements are dictated by industry standards (see section 7) and application-specific regulations. For example, in the automotive industry, ferrules must meet stringent requirements for fatigue resistance and vibration damping. Functional implementation is dependent on the fitting type – flared fittings, compression fittings, and crimped fittings each require specific ferrule designs and assembly procedures. Finite Element Analysis (FEA) is frequently used during the design process to optimize ferrule geometry and predict stress distribution under various loading conditions. Fatigue life analysis is crucial for ensuring the ferrule can withstand repeated pressure cycles without failure. The proper selection of ferrule material and the correct application of assembly torque are essential for achieving optimal performance and preventing leakage.
Technical Specifications
| Parameter | Carbon Steel (SAE 1045) | Alloy Steel (4140) | Stainless Steel (316) | Unit |
|---|---|---|---|---|
| Tensile Strength | 650 | 850 | 900 | MPa |
| Yield Strength | 370 | 620 | 550 | MPa |
| Hardness (Rockwell C) | 20-25 | 30-35 | 25-30 | HRC |
| Burst Pressure (Typical) | 4000 | 5000 | 6000 | psi |
| Corrosion Resistance | Low (Requires Coating) | Moderate | Excellent | Qualitative |
| Operating Temperature Range | -40 to 120 | -40 to 200 | -320 to 650 | °C |
Failure Mode & Maintenance
Hydraulic hose ferrule failures typically manifest as leakage, often accompanied by a sudden pressure drop in the system. Common failure modes include fatigue cracking (caused by repeated pressure cycling), thread stripping (in compression fittings), corrosion pitting (especially in carbon steel ferrules exposed to corrosive fluids), and deformation due to over-tightening. Failure analysis often reveals that improper installation is a major contributing factor. Over-torquing can lead to thread damage or ferrule deformation, while under-torquing can result in insufficient sealing force. Corrosion can initiate at surface defects or areas where the protective coating has been compromised. Galvanic corrosion can occur when dissimilar metals are in contact in the presence of an electrolyte. Maintenance recommendations include regular visual inspections for signs of corrosion, damage, or leakage. Periodic torque checks on compression fittings are also advisable. When replacing a ferrule, it’s crucial to use the correct type and size specified by the hose and fitting manufacturer. Proper cleaning of the fitting socket and hose end before assembly is essential to remove any dirt or debris that could compromise the seal. Lubrication of the ferrule during installation (where appropriate) can reduce friction and ensure proper seating. Avoid using abrasive cleaning methods that could damage the ferrule surface. A comprehensive preventative maintenance program that includes ferrule inspection and replacement as needed is critical for maximizing hydraulic system reliability.
Industry FAQ
Q: What is the primary difference between a carbon steel ferrule with zinc plating and a stainless steel ferrule in terms of long-term cost?
A: While a stainless steel ferrule has a higher upfront cost, its superior corrosion resistance translates to a lower life-cycle cost, especially in harsh environments. A zinc-plated carbon steel ferrule will require periodic replacement due to corrosion, leading to increased labor and downtime costs over time. The total cost of ownership for stainless steel is often lower when factoring in replacement frequency and associated costs.
Q: How does the wall thickness of the ferrule affect its performance and suitability for high-pressure applications?
A: Increasing the ferrule wall thickness directly increases its strength and resistance to deformation under pressure. However, there's a trade-off. Excessive wall thickness can make installation more difficult and may not provide a proportional increase in performance. The optimal wall thickness is determined by the hose and fitting specifications, as well as the maximum operating pressure of the system.
Q: What are the critical considerations when selecting a ferrule for a hydraulic system operating in a marine environment?
A: In marine environments, corrosion is a significant concern. Stainless steel (316 is preferable to 304 due to its enhanced chloride resistance) is the recommended material. The ferrule should also be compatible with the hydraulic fluid used in the system. Regular inspection and cleaning are crucial to remove salt buildup, which can accelerate corrosion.
Q: What are the potential consequences of using an incompatible ferrule with a particular hydraulic hose?
A: Using an incompatible ferrule can lead to several problems, including leakage, premature hose failure, and potentially catastrophic system failure. An incorrect ferrule may not create a proper seal, or it may damage the hose during installation. Always verify that the ferrule is specifically designed for the hose and fitting being used.
Q: What torque specifications should be followed during the installation of compression-style ferrules?
A: Torque specifications are critical for ensuring a proper seal without damaging the fitting or ferrule. Always refer to the manufacturer's recommendations for the specific fitting being used. Using a calibrated torque wrench is essential to achieve the correct torque value. Over-torquing can strip threads, while under-torquing can lead to leakage.
Conclusion
Hydraulic hose ferrules, despite being relatively small components, play a fundamental role in the safe and reliable operation of hydraulic systems. Their performance is dictated by a complex interplay of material science, manufacturing precision, and proper installation techniques. Selecting the appropriate ferrule material based on the operating environment and application demands is crucial for maximizing lifespan and minimizing the risk of failure. Understanding the potential failure modes and implementing a robust preventative maintenance program are essential for ensuring long-term system integrity.
Future advancements in ferrule technology may focus on developing new materials with improved corrosion resistance and fatigue strength, as well as incorporating smart sensors to monitor ferrule performance and detect potential failures before they occur. Furthermore, advancements in manufacturing processes, such as additive manufacturing, could enable the creation of customized ferrules tailored to specific application requirements. Ultimately, a thorough understanding of the principles outlined in this guide is essential for engineers, procurement managers, and maintenance personnel involved in the design, operation, and maintenance of hydraulic systems.
