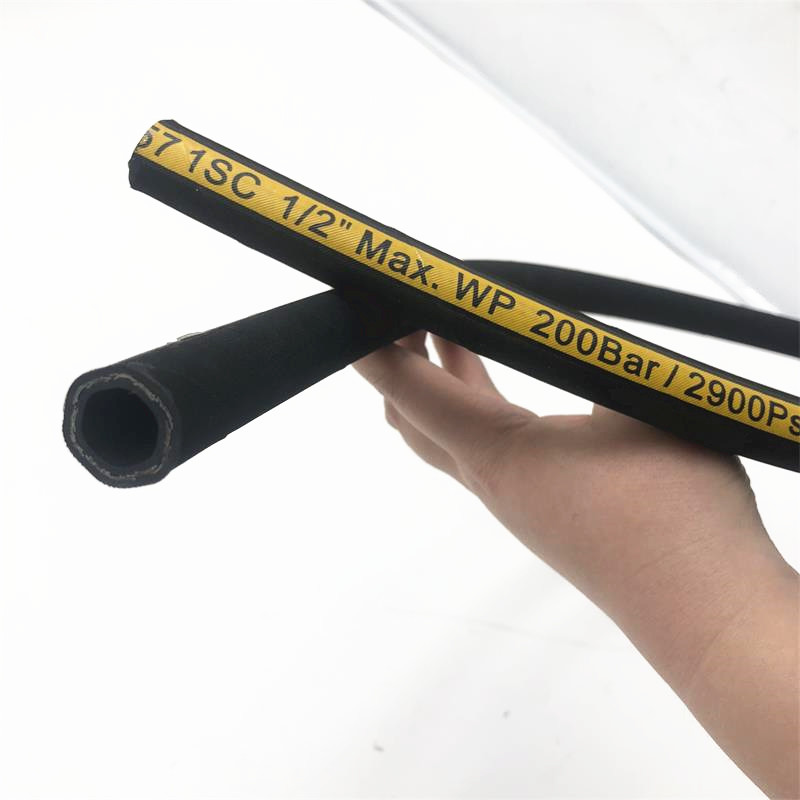

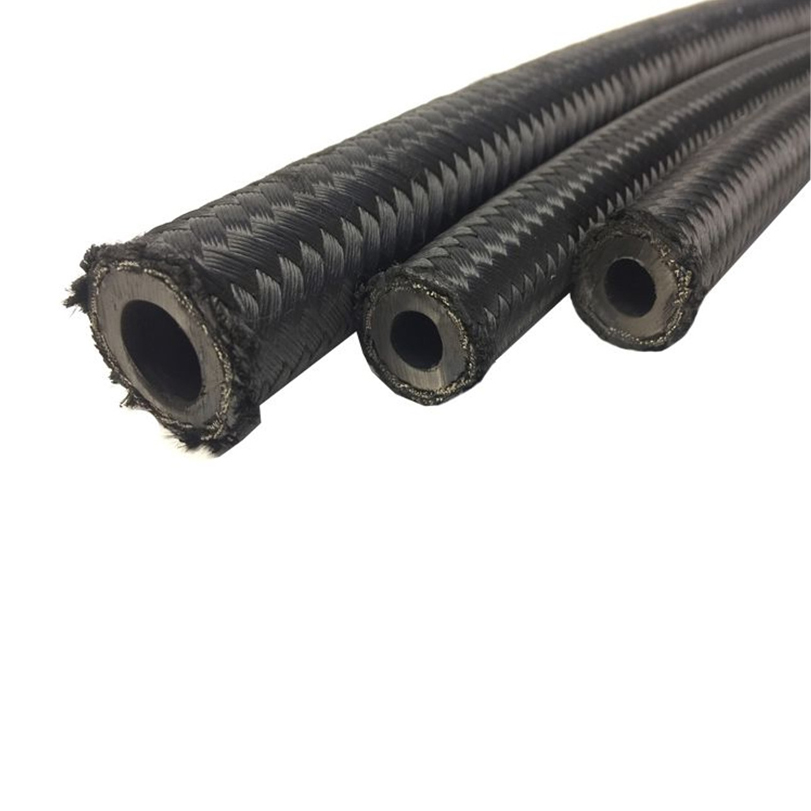

Introduction
Hydraulic hose couplings are critical components in fluid power systems, responsible for establishing leak-free connections between hoses and equipment. They serve as the interface for transmitting hydraulic fluid, enabling the transfer of power in a diverse range of applications including construction machinery, agricultural equipment, industrial manufacturing, and aerospace systems. Unlike simple pipe fittings, hose couplings are designed to accommodate the flexibility and dynamic movement inherent in hose assemblies, requiring specialized sealing mechanisms and robust material selection. Their performance directly impacts system efficiency, reliability, and safety. The selection of an appropriate coupling depends heavily on pressure requirements, fluid compatibility, operating temperature, and the hose material itself. This guide provides an in-depth technical overview of hydraulic hose coupling design, material science, manufacturing, performance characteristics, failure modes, and relevant industry standards.
Material Science & Manufacturing
Hydraulic hose couplings are typically manufactured from carbon steel, alloy steel, stainless steel, and, in specialized applications, brass or aluminum. Carbon steel couplings are most common due to their cost-effectiveness and strength, but require protective coatings to resist corrosion. Alloy steels, such as those containing chromium, molybdenum, and nickel, provide enhanced strength, toughness, and corrosion resistance. Stainless steel couplings are preferred in corrosive environments or where hygienic conditions are essential. The manufacturing process varies depending on the coupling type and material. Common methods include:
- Forging: Used for high-pressure couplings, forging creates a dense, strong microstructure, maximizing resistance to fatigue and fracture. Critical parameters include forging temperature, pressure, and cooling rate.
- Machining: CNC machining is employed to achieve precise dimensions and threading on coupling bodies. Tool selection, cutting speed, and coolant application are crucial for surface finish and dimensional accuracy.
- Heat Treatment: Processes like hardening, tempering, and case hardening are applied to enhance material properties, specifically increasing surface hardness and core toughness.
- Plating/Coating: Zinc plating, nickel plating, or powder coating are applied to protect steel couplings from corrosion. Coating thickness and adhesion are critical performance factors.
- Rubber Bonding (for some coupling types): A critical process requiring precise surface preparation and adhesive application to ensure a robust bond between the metal and the rubber sealing element.
The rubber components, often incorporating nitrile (NBR), ethylene propylene diene monomer (EPDM), or fluorocarbon (Viton), are manufactured through molding processes. The rubber compound's hardness (measured via Shore A durometer), tensile strength, and elongation at break must be carefully controlled to achieve optimal sealing performance and resistance to fluid degradation. Material compatibility charts are essential to ensure the rubber compound resists swelling, cracking, or softening when exposed to the specific hydraulic fluid used in the system.
Performance & Engineering
The performance of a hydraulic hose coupling is governed by several engineering principles. Pressure Rating is paramount, dictated by the coupling's material strength, geometry, and thread design. Finite Element Analysis (FEA) is frequently used to simulate stress distribution under load and optimize coupling designs to withstand extreme pressures. Burst Pressure, typically four times the working pressure, is a critical safety parameter. Fatigue Resistance is vital in applications involving cyclical loading and vibration; coupling materials must exhibit high endurance limits to prevent crack initiation and propagation. Leakage Prevention relies on the precision of mating surfaces, the integrity of the sealing element (O-ring, gasket, or metal-to-metal seal), and the proper application of tightening torque.
Environmental Resistance considers the coupling's ability to withstand temperature extremes, humidity, and exposure to corrosive substances. The choice of materials and coatings significantly influences longevity in harsh operating conditions. Hose Retention Force is an important consideration; the coupling must securely grip the hose to prevent separation under pressure and movement. This is often achieved through crimping or interlocking designs. Flow Rate is indirectly affected by coupling design; minimizing internal restrictions ensures optimal fluid transfer efficiency. Compliance with industry standards, such as SAE J518 (for hydraulic hose), dictates minimum performance requirements for couplings.
Technical Specifications
| Parameter | Unit | Steel Coupling (Carbon Steel, Zinc Plated) | Stainless Steel Coupling (316) |
|---|---|---|---|
| Working Pressure | MPa | 31.5 | 48.3 |
| Burst Pressure | MPa | 126 | 193 |
| Temperature Range | °C | -40 to +100 | -60 to +200 |
| Thread Type | NPTF, BSPP | NPTF, BSPP | |
| Hose Shank Diameter (Typical) | mm | 6, 8, 10, 12 | 6, 8, 10, 12 |
| Material | Carbon Steel (SAE 1045) | Stainless Steel (AISI 316) |
Failure Mode & Maintenance
Hydraulic hose coupling failures can manifest in several ways. Thread Damage, caused by improper tightening, cross-threading, or corrosion, leads to leakage and potential hose detachment. Corrosion, particularly in carbon steel couplings exposed to moisture and corrosive fluids, weakens the material and promotes crack formation. Fatigue Cracking occurs in couplings subjected to cyclical loading, initiating at stress concentration points (e.g., thread roots). Seal Failure, resulting from O-ring degradation, improper installation, or contamination, leads to fluid leakage. Hose Blowout, where the hose separates from the coupling, is often caused by exceeding the pressure rating, internal hose damage, or insufficient hose retention force. Galling, a form of adhesive wear, can occur between mating surfaces, making disassembly difficult and compromising sealing integrity.
Preventive maintenance is crucial. Regular visual inspections should check for signs of corrosion, thread damage, and leakage. Couplings should be re-tightened to the manufacturer's specified torque values periodically. Hydraulic fluid should be regularly analyzed for contamination, which can accelerate coupling wear and seal degradation. Damaged or corroded couplings should be replaced immediately. Lubrication of threads during installation prevents galling. When disassembling couplings, use appropriate tools to avoid damaging the threads or sealing surfaces. Always ensure compatibility between the coupling material, the hose material, and the hydraulic fluid.
Industry FAQ
Q: What is the primary difference between NPT and BSPP threads in hydraulic hose couplings?
A: NPT (National Pipe Tapered) threads are tapered, relying on interference fit for sealing, while BSPP (British Standard Parallel Pipe) threads are parallel and require a sealing washer or O-ring for a leak-tight connection. Using the incorrect thread type will result in leakage and potential system failure. NPT is common in North America, while BSPP is frequently used in Europe and other regions.
Q: How does the material of the coupling affect its performance in different hydraulic fluids?
A: Different hydraulic fluids have varying chemical compositions and compatibility requirements. For example, phosphate ester fluids require couplings made from materials resistant to their corrosive properties, such as stainless steel or specialized alloy steels. Carbon steel couplings are generally suitable for mineral oil-based fluids but may be susceptible to corrosion with other fluid types.
Q: What is the importance of proper crimping when attaching a hose to a coupling?
A: Proper crimping is critical for achieving a secure and leak-free connection between the hose and coupling. An insufficient crimp allows the hose to slip, leading to fluid leakage and potential hose blowout. An excessive crimp can damage the hose reinforcement, reducing its pressure capacity. The crimp must conform to the hose manufacturer's specifications.
Q: What is the role of the O-ring in a hydraulic hose coupling?
A: The O-ring provides a dynamic seal between the coupling body and the mating surface, preventing fluid leakage. It's crucial that the O-ring is properly sized, lubricated, and free from damage. The O-ring material must be compatible with the hydraulic fluid.
Q: How can I identify if a hydraulic hose coupling is showing signs of fatigue?
A: Signs of fatigue can include visible cracks around the thread roots or coupling body, discoloration due to stress corrosion cracking, and evidence of deformation or ovalization. Any suspected fatigue warrants immediate replacement of the coupling.
Conclusion
Hydraulic hose couplings are essential components of any fluid power system, and their selection, installation, and maintenance are critical for ensuring safe and reliable operation. Understanding the material science, manufacturing processes, performance characteristics, and potential failure modes of these couplings is paramount for engineers and procurement professionals. The increasing demands for higher pressures, more durable materials, and improved environmental resistance continue to drive innovation in hydraulic hose coupling technology.
Future trends include the development of smart couplings with integrated sensors for monitoring pressure, temperature, and leakage, as well as the adoption of advanced materials like composite polymers and novel alloys to further enhance performance and longevity. Maintaining a proactive approach to inspection and preventive maintenance, coupled with adherence to relevant industry standards, will remain vital for minimizing downtime and maximizing the lifecycle of hydraulic systems.
