hydraulic hose assembly Performance Analysis
Introduction
Hydraulic hose assembly is a critical component in fluid power systems, responsible for safely and efficiently transmitting pressurized hydraulic fluid to actuators and other hydraulic components. Unlike simple tubing, hose assemblies incorporate reinforcement layers and end fittings, designed to withstand high pressures, fluctuating temperatures, and dynamic bending. Its technical position within the industrial chain lies between the manufacturing of raw hose and fittings, and the final integration into heavy machinery across sectors like construction, agriculture, manufacturing, and aerospace. Core performance metrics include burst pressure, working pressure, temperature range, and resistance to hydraulic fluids and external abrasion. Poorly assembled or specified hose assemblies are a significant cause of hydraulic system failures, leading to downtime, safety hazards, and costly repairs. This guide details the material science, manufacturing processes, performance characteristics, failure modes, and maintenance procedures associated with industrial hydraulic hose assembly.
Material Science & Manufacturing

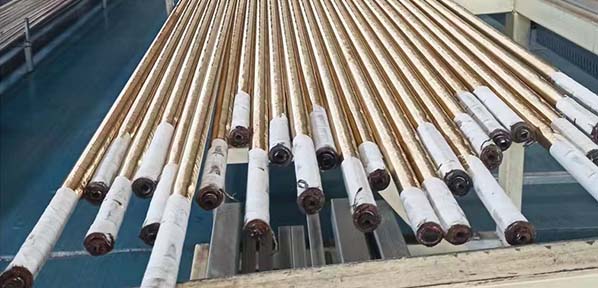

Hydraulic hose construction typically involves four key layers: the inner tube, reinforcement layers, outer cover, and end fittings. The inner tube, in direct contact with the hydraulic fluid, is commonly composed of synthetic rubbers like nitrile (NBR), ethylene propylene diene monomer (EPDM), or fluorocarbon (FKM – Viton). NBR offers good resistance to petroleum-based fluids but has limited temperature range. EPDM excels in high-temperature applications and compatibility with phosphate ester fluids. FKM provides superior chemical resistance and temperature capabilities, making it ideal for aggressive fluids and extreme environments. Reinforcement layers provide the strength to withstand internal pressure. These layers are typically braided or spiraled from high-tensile steel wire or synthetic fibers like aramid. Steel braiding offers higher pressure ratings, while synthetic fibers provide greater flexibility. The outer cover, providing abrasion and weather resistance, is generally made of synthetic rubber compounds like polyurethane or chloroprene. Manufacturing processes vary based on hose type. Braided hoses are produced by helically winding pre-formed steel wire around a mandrel, followed by extrusion of the inner tube and cover. Spiral hoses involve continuously winding steel wire in a spiral pattern, providing even higher pressure capacity. Critical parameters during manufacturing include consistent reinforcement density, proper adhesion between layers, and precise dimensional control. Post-manufacturing, hoses undergo hydrostatic testing to verify pressure integrity and leak tightness. Fitting attachment, typically via crimping, is a crucial step, requiring precise tooling and control of crimp dimensions to ensure a secure, leak-proof connection. Incorrect crimping can lead to premature failure.
Performance & Engineering
The performance of a hydraulic hose assembly is governed by several key engineering principles. Burst pressure, the maximum pressure the hose can withstand before rupture, is a fundamental specification. Working pressure is significantly lower, typically 50-75% of burst pressure, providing a safety margin. Hose assemblies are subject to complex stress states, including internal pressure, external bending, and axial tension. Bending radius is critical; exceeding the minimum bend radius can cause kinking and fatigue failure. Finite element analysis (FEA) is frequently used to model stress distribution and optimize hose design for specific applications. Environmental resistance is also paramount. Exposure to UV radiation, ozone, extreme temperatures, and corrosive chemicals can degrade the hose materials, reducing their lifespan and performance. Compliance requirements vary by industry and region. Standards such as SAE J517 (USA), EN 853/857 (Europe), and ISO 14307 (International) define hose construction, performance testing, and marking requirements. Electrostatic discharge (ESD) can also be a concern in certain applications, requiring the use of conductive hose constructions to prevent static buildup. For high-speed hydraulic systems, pulse pressure resistance – the ability to withstand repeated pressure fluctuations – becomes a crucial factor. Proper hose guard protection is often required to prevent abrasion and impact damage, particularly in exposed applications.
Technical Specifications
| Hose Type | Reinforcement | Working Pressure (PSI) | Burst Pressure (PSI) |
|---|---|---|---|
| SAE 100 R1 AT | Single Steel Wire Braid | 2000 | 8000 |
| SAE 100 R2 AT | Two Steel Wire Braids | 3000 | 12000 |
| SAE 100 R6 | Four Steel Wire Spirals | 6000 | 24000 |
| Thermoplastic | Synthetic Fiber Braid | 1500 | 6000 |
| Ultra High Pressure (UHP) | Multiple Spiral Steel Wire | 10000 | 40000 |
| Rubber with Aramid Reinforcement | Aramid Fiber Braid | 2500 | 10000 |
Failure Mode & Maintenance
Hydraulic hose assemblies are susceptible to several failure modes. Fatigue cracking, caused by repeated bending and pressure cycling, is a common issue, particularly near the fittings. Delamination, the separation of reinforcement layers, can occur due to inadequate bonding or exposure to aggressive fluids. Abrasion, resulting from contact with abrasive surfaces, can wear through the outer cover, exposing the reinforcement layers. Oxidation and chemical degradation can compromise the rubber compounds, leading to brittleness and cracking. Fitting failures, often stemming from improper crimping or corrosion, can result in leaks. Internal erosion, caused by particulate contamination in the hydraulic fluid, can damage the inner tube. To prevent failures, regular inspections are crucial. Check for signs of abrasion, cracking, swelling, or leakage. Verify that the hose is properly routed and secured, avoiding sharp bends or contact with hot surfaces. Maintain proper hydraulic fluid cleanliness through filtration. Replace hoses at recommended intervals, even if no visible damage is present. Proper storage is also important; hoses should be stored in a cool, dry place away from direct sunlight and ozone sources. When replacing a hose, always use compatible fittings and ensure proper crimping procedures are followed. Record keeping of hose replacement and inspection dates can help track performance and identify potential systemic issues.
Industry FAQ
Q: What is the difference between SAE 100 R1 AT and SAE 100 R2 AT hose?
A: The primary difference is the reinforcement. SAE 100 R1 AT utilizes a single steel wire braid, providing a working pressure of approximately 2000 PSI. SAE 100 R2 AT employs two steel wire braids, doubling the pressure capacity to around 3000 PSI. R2AT hoses offer greater strength and durability but are also less flexible than R1AT hoses.
Q: How does temperature affect hydraulic hose performance?
A: Temperature significantly impacts hose performance. High temperatures can accelerate rubber degradation, reduce pressure ratings, and increase the risk of leaks. Low temperatures can cause the rubber to become brittle and less flexible. Hose selection must consider the operating temperature range of the hydraulic system and the fluid being used. Always refer to the manufacturer's specifications for temperature limits.
Q: What is the proper procedure for crimping hydraulic hose fittings?
A: Proper crimping requires a calibrated crimping machine, the correct die set for the hose and fitting combination, and adherence to the fitting manufacturer's specifications. Incorrect crimping can lead to leaks, premature failure, or fitting detachment. It is crucial to verify crimp dimensions after each crimp using appropriate measurement tools.
Q: How important is hose guard protection?
A: Hose guard protection is critical, particularly in exposed applications. It prevents abrasion, cutting, and impact damage that can compromise the hose integrity. Selecting the appropriate hose guard material (e.g., nylon spiral wrap, steel sleeve) depends on the severity of the operating environment.
Q: What are the common causes of hydraulic fluid leakage in hose assemblies?
A: Common causes include improper crimping, damaged or deteriorated seals, abrasion of the hose cover exposing the reinforcement, fatigue cracking due to repeated bending, and incompatible fluid exposure. Regular inspection and preventative maintenance are key to minimizing leakage risks.
Conclusion
Hydraulic hose assembly represents a complex interplay of material science, engineering design, and precise manufacturing processes. Achieving reliable and safe operation requires careful consideration of factors such as pressure rating, temperature range, fluid compatibility, and environmental conditions. Understanding the potential failure modes and implementing a robust maintenance program are essential for maximizing hose lifespan and minimizing downtime. Proper hose selection, coupled with correctly applied fittings and rigorous quality control, are paramount to ensuring the longevity and safety of any hydraulic system.
Looking ahead, advancements in hose materials, such as thermoplastic constructions offering improved chemical resistance and weight reduction, will continue to refine hydraulic hose assembly technology. The increasing integration of sensors for real-time condition monitoring and predictive maintenance will offer opportunities to optimize hose replacement schedules and proactively address potential failures. Ultimately, a holistic approach that encompasses meticulous engineering, diligent maintenance, and continuous improvement is critical for maximizing the performance and reliability of hydraulic hose assemblies in demanding industrial applications.
