oem high pressure hydraulic hose factory Performance Engineering

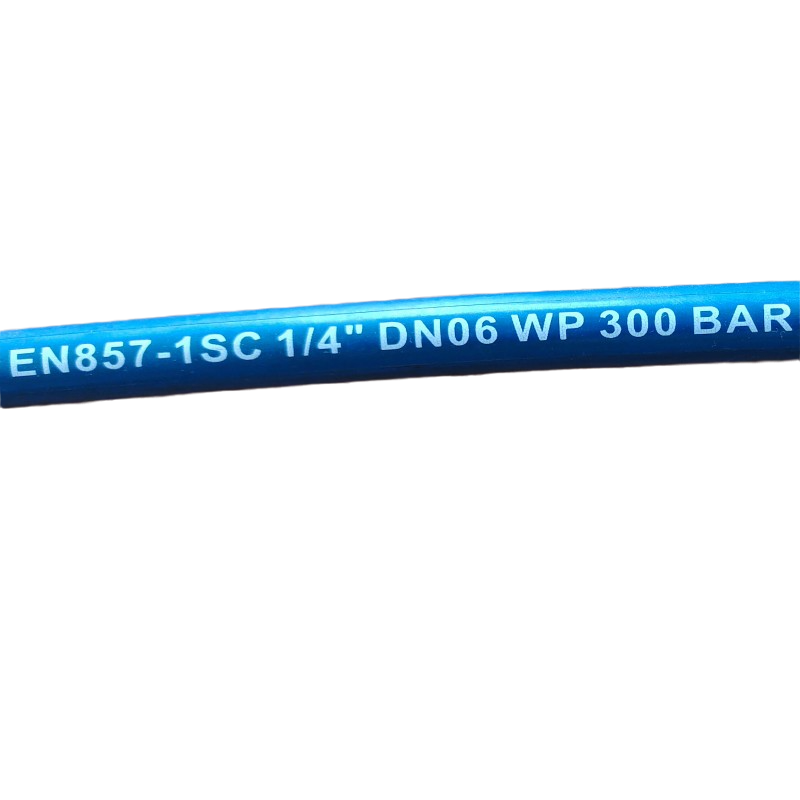

Introduction
OEM high pressure hydraulic hose is a critical component in fluid power systems, utilized across a diverse range of industries including construction, agriculture, mining, manufacturing, and aerospace. These hoses are engineered to safely and reliably transmit hydraulic fluid under extreme pressures, facilitating the operation of heavy machinery and automated processes. Their technical position within the industrial chain lies between hydraulic pump/valve manufacturers and the end-user equipment. Core performance characteristics revolve around burst pressure, working pressure, temperature resistance, fluid compatibility, and dimensional stability. The increasing demand for higher operating pressures in modern hydraulic systems drives continuous advancements in hose construction materials and manufacturing processes. Key pain points in the industry include ensuring consistent quality across large-volume OEM production runs, minimizing hose weight while maintaining structural integrity, and meeting increasingly stringent environmental regulations regarding fluid containment and material composition. Selection is crucial; improper hose selection can lead to catastrophic failure, resulting in equipment damage, downtime, and potential safety hazards.
Material Science & Manufacturing
High pressure hydraulic hoses are typically constructed from multiple layers, each contributing to specific performance characteristics. The inner tube, which comes into direct contact with the hydraulic fluid, is commonly made from synthetic rubbers like Nitrile (NBR), Ethylene Propylene Diene Monomer (EPDM), or Fluorocarbon (FKM/Viton), selected based on fluid compatibility. NBR offers excellent resistance to petroleum-based fluids but has limited temperature range. EPDM provides superior temperature and weather resistance but may not be suitable for all petroleum-based fluids. FKM offers the broadest fluid compatibility and highest temperature resistance but is the most expensive option. The reinforcement layer is the critical element for pressure resistance. Common materials include high-tensile steel wire (single or multiple braids), spiral-wound steel wire, and synthetic fiber reinforcement (e.g., aramid). Spiral-wound construction offers higher pressure ratings and greater flexibility than braided construction. The outer cover is typically a synthetic rubber blend (e.g., Chloroprene) providing abrasion, weather, and ozone resistance. Manufacturing processes involve extrusion of the inner tube and outer cover, followed by precise winding of the reinforcement layer. Critical parameter control includes maintaining consistent rubber compound formulations, accurate wire tension during winding, proper vulcanization temperatures and times, and precise dimensional tolerances. Quality control at each stage, including non-destructive testing (NDT) of the reinforcement layers, is essential to ensure product integrity. Improper vulcanization can lead to rubber degradation and reduced pressure capacity; inconsistent wire tension impacts burst pressure and fatigue life.
Performance & Engineering
The performance of a high pressure hydraulic hose is dictated by several key engineering considerations. Burst pressure, typically four times the working pressure, is a critical safety factor. Working pressure must be selected based on the maximum system pressure plus a safety margin. Hose flexibility is essential for ease of installation and routing. Spiral-wound hoses generally offer greater flexibility than braided hoses, particularly at higher pressure ratings. Temperature resistance is crucial, as hydraulic fluid temperature can vary significantly. The selected hose materials must maintain their mechanical properties within the expected temperature range. Fluid compatibility is paramount; incompatible fluids can cause swelling, degradation, and ultimately, hose failure. Force analysis is vital in determining the hose’s ability to withstand bending, twisting, and axial loads. The bending radius should adhere to manufacturer specifications to prevent kinking and damage to the reinforcement layers. Environmental resistance, particularly to ozone, UV radiation, and abrasion, is critical for long-term durability. Compliance requirements, such as those stipulated by SAE J517 and EN 856, dictate minimum performance standards and testing procedures. Hydraulic hose assemblies must be properly crimped using dies designed for the specific hose and fitting combination to ensure a leak-free and secure connection. Failure to use the correct crimping procedure can result in fitting blow-off or hose separation.
Technical Specifications
| Parameter | Unit | SAE 100R2AT | SAE 100R6 |
|---|---|---|---|
| Working Pressure | PSI | 2250 | 2000 |
| Burst Pressure | PSI | 6750 | 6000 |
| Temperature Range | °F | -40 to +212 | -40 to +176 |
| Inner Tube | Material | Synthetic Rubber (NBR) | Synthetic Rubber (NBR) |
| Reinforcement | Material | Two Steel Wire Braid | Four Steel Wire Braid |
| Outer Cover | Material | Synthetic Rubber (CRM) | Synthetic Rubber (CRM) |
Failure Mode & Maintenance
High pressure hydraulic hoses are susceptible to several failure modes. Fatigue cracking, particularly in the reinforcement layers, is a common failure mechanism resulting from repeated bending and pressure cycling. Delamination, or separation of the hose layers, can occur due to inadequate bonding during manufacturing or exposure to incompatible fluids. Rubber degradation, caused by oxidation, UV exposure, and ozone attack, can lead to loss of flexibility and reduced pressure capacity. Abrasion damage to the outer cover can expose the reinforcement layers to corrosion. Internal degradation of the inner tube can result from fluid incompatibility and can lead to swelling, cracking, and eventual leakage. Pinholes can develop due to localized damage or corrosion. Proper maintenance includes regular visual inspection for signs of damage, such as cracks, abrasions, and swelling. Hose assemblies should be replaced if any damage is detected. Avoid sharp bending and twisting of the hose during installation and operation. Ensure proper routing to prevent abrasion against other components. Regularly check fitting connections for leaks. Hydraulic fluid should be maintained at the recommended cleanliness level to prevent internal hose degradation. Implement a hose management program to track hose age and replacement schedules. Crimped fittings should be inspected for signs of corrosion or damage.
Industry FAQ
Q: What is the impact of fluid velocity on hose life?
A: Higher fluid velocities can accelerate erosion of the inner tube, particularly with fluids containing abrasive particles. Increased velocity also leads to greater pressure drop and increased heat generation, potentially exacerbating degradation. It is critical to adhere to the manufacturer’s recommended fluid velocity limits.
Q: How does hose length affect working pressure?
A: Longer hose lengths experience greater pressure drop due to friction. While the burst pressure remains constant, the effective working pressure is reduced due to the increased pressure loss. Therefore, longer hose runs may require a larger hose diameter to maintain adequate flow and pressure.
Q: What is the significance of hose end fitting material?
A: The fitting material must be compatible with both the hose and the hydraulic fluid. Common fitting materials include carbon steel, stainless steel, and brass. Incompatible materials can lead to corrosion and eventual failure of the connection. Proper crimping is crucial for a secure fit, regardless of the fitting material.
Q: What are the common causes of hose kinking?
A: Kinking occurs when the hose is bent beyond its minimum bend radius. This can damage the reinforcement layers and restrict fluid flow. Improper routing, insufficient space, and excessive tightening of fittings can all contribute to kinking. Selecting a hose with a tighter bend radius is crucial in confined spaces.
Q: How important is the selection of the correct crimping die?
A: Absolutely critical. Using an incorrect die will result in an improperly crimped fitting, leading to potential leakage, fitting blow-off, or hose separation. Each hose and fitting combination requires a specific die set specified by the manufacturer. Improper crimping voids any warranty and poses a significant safety risk.
Conclusion
OEM high pressure hydraulic hoses are engineered components demanding precise material selection, manufacturing control, and application expertise. Understanding the interplay between fluid compatibility, operating pressure, temperature, and environmental factors is paramount for ensuring long-term reliability and safety. Selecting a hose that is appropriately rated for the application and maintaining it through regular inspection and preventative measures significantly reduces the risk of failure and optimizes system performance.
The future of hydraulic hose technology will likely focus on the development of lighter-weight materials, enhanced corrosion resistance, and intelligent hose assemblies equipped with sensors for real-time monitoring of pressure, temperature, and internal degradation. Adherence to industry standards and best practices, coupled with continuous innovation, will be critical for meeting the evolving demands of hydraulic systems in a wide range of industries.
